Two Line Mass Casualty Decon Shower System

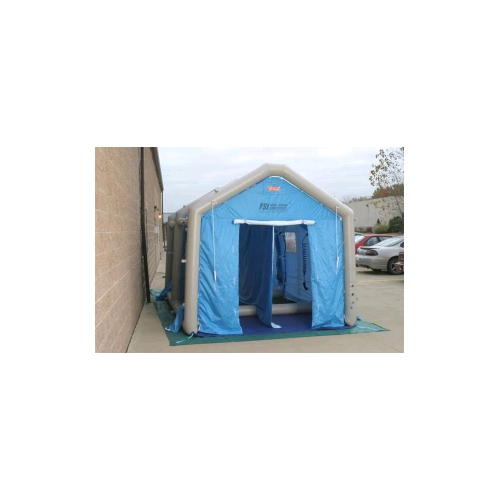

FSI DAT®3535S Two Line Mass Casualty Decon Shower System

The FSI model DAT®3535S is a two-line wide (5' W, 5' W), 4 station mass casualty decon shower system which handles two parallel lines of casualties at the same time in four sequential stations --- (1) undress 4’ section, (2) detergent shower & (3) rinse shower in a 7’ section, (4) redress 4’ section – 1.2 M/2.13 M/1.2 M. This unit deploys in under two minutes, and processes 2 or 4 ambulatory personnel at a time, and/or 2 non-ambulatory personnel at one time or any combination. Undress and redress stations are dry (plumbing is possible and optional); each of the four shower stations include 3 showerheads and one hanging coiled ½”/13 mm hose line with attached multiple function spray nozzle which thoroughly drenches and decontaminates via a fine water mist. There are a total of 4 multiple function spray nozzle guns and 4 sections of 3 shower heads for a total of 16 water discharge ports as standard. Shutoffs and quick disconnects supplied with every group of shower heads and trigger gun. As an option -- by configuring the changing areas on both ends as decon showers one can double the capacity as detailed above. Wastewater is contained within integral ground floor and 6” (15 cm) high water berm when system is initially inflated (holds approx. 200 gallons/800 litres of waste water before pump-out is required).
Includes separate “dirty” entry and “clean” full sized exit doors, center divider curtain to separate lines 1 and 2, 6 ½ cross divider curtains, 2 – ¾” (18mm) High pressure 300 psi (20 bar) GHT threaded inlet hoses – other fittings available as specified, reflective air vents at each end, reflective striping on each end to delineate built in decon pool. All canopy walls are velcro’d to the floor air berms for air lock. These professional decon systems can be inflated either with high pressure air from an scba/ scuba tank, with an electric inflator, or with compressed air from any available source.

Frame: Heavy Duty 1100 Dtex* polyester coated w. plastomer on both sides, UV/Chemical resistant.

Canopy: Heavy duty 100% nylon twill (3/5) w. PU white pigment inner coating, ABT. 0 23mm X 57/58. Wt. AB1.230GR/Sq. M - UV/chemical resistant/fire retardant – UV resistant and water repellent w. a hydrostatic resistance of 250 psi + - Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508 - Fire resistance meets and exceeds CPAI 84 SECTION 5 1995, US Fed. Test CFR.1610, meets NFPA701 Flammability Test method 1 (2004), NFPA 702 w. ‘A’ burn scale rating.

Floor: PVC of 0.58mm thickness (1,000 Dtex, 18 X 18 polyester) 660 grams per sq. mm 60” W.

Colors: Standard color is "FSI Blue". Green and White also available as standard. Other colors offered P.O.A.

Technical data: Air pressure internally once inflated = 4.3 psi (0.3 bar)USA Federal Standard FS # 191 5041/5102/5134/5970 Test Method Structural Test resultsTotal Weight (g/m2) – 1055Thickness (mm) – 0.90Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404Elongation (%) – Warp = 30 - Weft = 47Tongue tear (lbs.) – Warp = 87 – Weft = 100Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9Density = 30 X 24.5 Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available.

Weight approx. 145 pounds (65 kg) Inflated size is 10’ W x 15’ L x 8’ H. (3.04 M X 4.6 M X 2.43 M) Carton size approx. = 125 X 63 X 43 cm (50” L X 25” W X 17” H) Standard colors are Blue, Green. White. All units come equipped as standard equipment with an integral ground floor, 2 roll up windows, 2 skylights, roll-up, full zip, dirty entry/clean exit doors, 4 HVAC 17” (43 cm) air duct inlets/outlets w. tie closures – 2 per side (may also be used as clothes discharge outlets), 2 high pressure and 2 low pressure inflation deflation valves, one air inflation hose w. safety cord, 2 pressure relief valves, 6 stainless steel stakes and ground anchor points, repair kit, manual, carry bag, 2 upper air vents, and hammer. Unit supplied w. no charge redundant features allowing for - hanging undress/redress kits etc. on the inlet and outlet side. Units can attach to a second shelter/shower system. * 1100 dtex material is 1.5mm thick and consists of 0.62mm plastomer coated PVC/0.3mm polyester yarn/0.62mm plastomer coated PVC
