Single Wide Stretcher Decon Shower

DAT®2626S Single Wide Stretcher Decon Shower HAZMAT DECON SHOWER SYSTEM

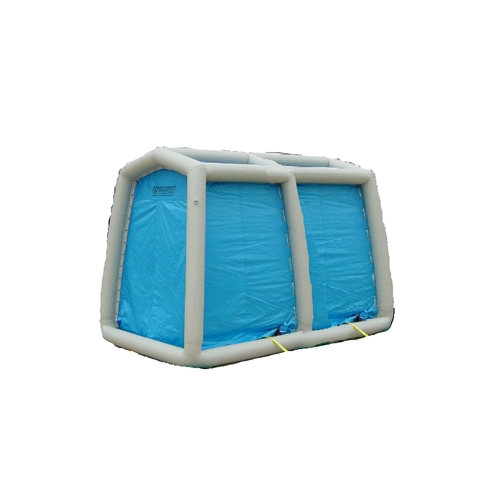

The FSI DAT®2626S is a one - line wide 7' W X 13’ L X 8’ H (2.13 M X 3.95 M X 2.43 M), 3 station - 3’L, 7’L, 3’L (.91 M, 2.13 M, .91 M) Mass Casualty Decon Shower System which handles a single line of ambulatory and/or non-ambulatory casualties in three sequential stations --- (1) undress, (2) shower 3) redress. This unit deploys in under two minutes, and processes three ambulatory personnel at a time (one in each stage of the unit), and/or one non-ambulatory victim at one time in the middle shower section.
Undress and redress stations are dry (plumbing is possible and optional); the middle shower station includes 6 shower heads (2 sections of 3 shower heads) and two hanging coiled ½”/13 mm hose lines with 2 attached multiple function spray nozzles (one on each side of the unit) which thoroughly drenches and decontaminates via a fine water mist for a total of 8 shower heads as standard. Shutoffs and quick disconnects supplied with every group of shower heads and with each trigger gun. Flows per shower head and per spray gun = approx. 1 gpm/4 lpm  optimum and dependent on water volumes available.
As an option -- by configuring the changing areas on both ends as Decon showers one can double the capacity as detailed above.
Wastewater is contained within integral ground floor and 6”/15 cm berm erected when system is initially inflated (holds approx. 115 gallons – 430 litres - of waste water before pump-out is required).
Includes full closure slip in and out dirty entry/clean exit doors on each end, 2 - ½ cross divider curtains, two roll up windows (one on each side), 2 skylights, high pressure air inflation/deflation valve, one air inflation hose w. safety cord, pressure relief valve, 6 stainless steel stakes and ground anchor points, tie down ropes and 4 D-rings to tie off to, repair kit, manual, carry bag, 2 upper air vents, 2 HVAC/dirty clothes ducts with ties closures, and hammer. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit integral shower stall air berms. Units can attach to a second shower or FSI Shelter. Simply inflate the unit and plug into a water supply. DAT®2525SMA offered with integral ground floor, 1 – ¾” (18mm) high pressure 300 psi (20 bar) GHT threaded inlet hose – other fittings available as specified. Decontamination can commence in 1 - 2 minutes. Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available.

Frame: Heavy duty 1100 Dtex polyester coated w. plastomer on both sides, UV/Chemical resistant.
Cover: Heavy duty 420 denier nylon coated with polyurethane (PVC) on both sides. UV/chemical resistant/fire retardant.
Floor: PVC coated .52 mm polyester.
Standard color is ‘EMS’ Blue. Green and White also available at no extra cost. Other colors optional with an extra charge.

Technical Data:
* Comes complete with electric inflator/deflator, and high pressure
  scba fitting.
* Unit supplied w. no charge redundant features allowing for - hanging
  undress/redress kits etc. on the inlet and outlet side and -
  doubling of showering capability in the future.
* DAT®2626S Approx. 91 sq. Ft., 93 lbs. (42 Kg)
* Air pressure internally once inflated = 4.3 psi (0.3 bar)
* Carton size approx. = 120 X 60 X 40 cm (49” L X 24” W X 16” H)
* Air pressure internally once inflated = 4.3 psi (0.3 bar)
* USA Federal Standard FS # 191 5041/5102/5134/5970 Test
   Method Structural Test results
* Total Weight (g/m2) – 1055
* Thickness (mm) – 0.90
* Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404
* Elongation (%) – Warp = 30 - Weft = 47
* Tongue tear (lbs.) – Warp = 87 – Weft = 100
* Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9
* Density = 30 X 24.5

The DAT®2626S Hazmat Decon Shower System includes:
* DAT®2626S Portable Hazmat Decon Shower System
* Inflator Deflator
* Tie down Stakes
* Repair Kit
* SCBA Connector
* Carrying Case
