Single Line Decon/Hazmat Shower

DAT®2525SMA SINGLE LINE HAZMAT DECON SHOWER SYSTEM

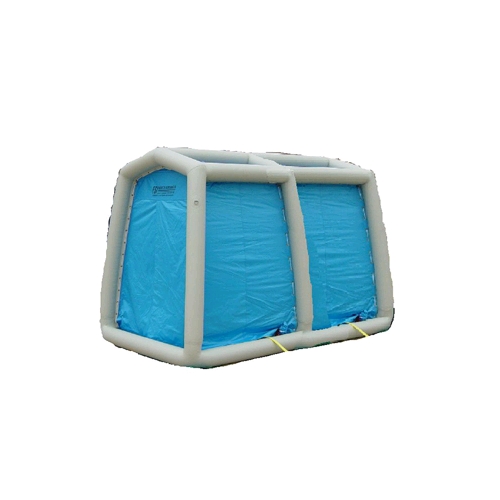

FSI DAT®2525SMA Single Line Mass Casualty Hazmat Decontamination Shower System

Frame: Heavy duty 1100 dtex polyester coated w. plastomer on both sides, UV/Chemical resistant.
Cover: Heavy duty 420 denier nylon coated with polyurethane (PVC) on both sides. UV/chemical resistant/fire retardant.
Floor: PVC coated .52 mm polyester.
Standard color is ‘EMS’ Blue. Green and White also available at no extra cost. Other colors optional with an extra charge.

The FSI DAT®2525SMA is a one - line wide 7' W X 13’ L X 8’ H (2.13 M X 3.95 M X 2.43 M), 3 station - 3’L, 7’L, 3’L (.91 M, 2.13 M, .91 M) Mass Casualty Decon Shower System which handles a single line of ambulatory and/or non-ambulatory casualties in three sequential stations --- (1) undress, (2) shower 3) redress. This unit deploys in under two minutes, and processes three ambulatory personnel at a time (one in each stage of the unit), and/or one non-ambulatory victim at one time in the middle shower section.
Undress and redress stations are dry (plumbing is possible and optional); the middle shower station includes 6 shower heads (2 sections of 3 shower heads) and two hanging coiled ½”/13 mm hose lines with 2 attached multiple function spray nozzles (one on each side of the unit) which thoroughly drenches and decontaminates via a fine water mist for a total of 8 shower heads as standard. Shutoffs and quick disconnects supplied with every group of shower heads and with each trigger gun. Flows per shower head and per spray gun = approx. 1 gpm/4 lpm optimum and dependent on water volumes available.
As an option -- by configuring the changing areas on both ends as Decon showers one can double the capacity as detailed above.
Wastewater is contained within integral ground floor and 6”/15 cm berm erected when system is initially inflated (holds approx. 115 gallons – 430 litres - of waste water before pump-out is required). Includes full closure slip in and out dirty entry/clean exit doors on each end, 2 - ½ cross divider curtains, two roll up windows (one on each side), 2 skylights, high pressure air inflation/deflation valve, one air inflation hose w. safety cord, pressure relief valve, 6 stainless steel stakes and ground anchor points, tie down ropes and 4 D-rings to tie off to, repair kit, manual, carry bag, 2 upper air vents, 2 HVAC/dirty clothes ducts with ties closures, and hammer. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit integral shower stall air berms. Units can attach to a second shower or FSI Shelter.
Simply inflate the unit and plug into a water supply. DAT®2525SMA offered with integral ground floor, 1 – ¾” (18mm) high pressure 300 psi (20 bar) GHT threaded inlet hose – other fittings available as specified. Decontamination can commence in 1 - 2 minutes. Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available.

Technical Data:
* Comes complete with electric inflator/deflator, and high
  pressure scba fitting.
* Unit supplied w. no charge redundant features allowing for - hanging
  undress/redress kits etc. on the inlet and outlet side and - doubling of
  showering capability in the future.
* DAT®2525SMA Approx. 91 sq. Ft., 93 lbs. (42 Kg)
* Air pressure internally once inflated = 4.3 psi (0.3 bar)
* Carton size approx. = 120 X 60 X 40 cm (49” L X 24” W X 16” H)
* Air pressure internally once inflated = 4.3 psi (0.3 bar)
* USA Federal Standard FS # 191 5041/5102/5134/5970 Test
  Method Structural Test results
* Total Weight (g/m2) – 1055
* Thickness (mm) – 0.90
* Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404
* Elongation (%) – Warp = 30 - Weft = 47
* Tongue tear (lbs.) – Warp = 87 – Weft = 100
* Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9
* Density = 30 X 24.5

The DAT®2525SMA System includes:
* DAT2525SMA Portable Hazmat Decon Shower System
* Inflator Deflator
* Tie down Stakes
* Repair Kit
* SCBA Connector
* Carrying Case
