First Responder Hazmat/Decon Shower System

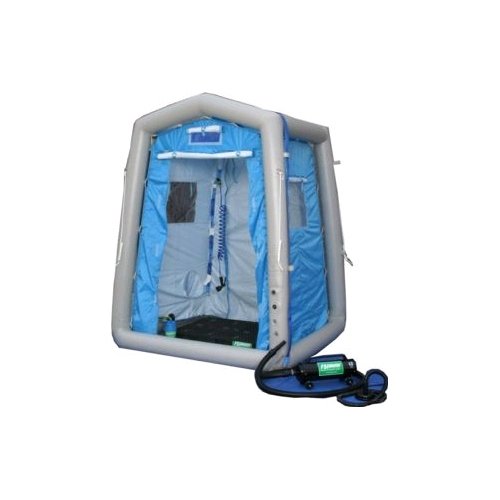

FSI DAT® 2020S First Responder Hazmat Decontamination Shower System

The DAT®2020S comes equipped as standard equipment with an integrally attached ground floor that will hold up to 100 gallons of water (with an 8”/20 cm berm approx.) before requiring pump out, 2 roll up windows – one on each side, 1 skylight, full closure slip in and out dirty entry/clean exit doors on each end, high pressure air inflation/deflation valve, one air inflation hose w. safety cord, pressure relief valve, 4 stainless steel stakes and ground anchor points, Tie Down Ropes and 4 D-rings to tie off to, Repair kit, manual, carry bag, 2 upper air vents, and hammer. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit air berms. Units can attach to a second shower or FSI Shelter. The DAT®2020S also comes complete with a qty. of 7 spray nozzle heads and a single 5’ (150 cm) length of coiled ½”/13 mm hose with an attached multiple function spray gun with spray patterns and flows meant to gently yet thoroughly drench and decon victims. Shutoffs and quick disconnects supplied with every group of shower heads and trigger gun. Flows per shower head and per spray gun = approx. 1 gpm/4 lpm optimum and dependent on water volumes available. Simply inflate the unit and plug into a water supply. DAT™2020S offered with 1 – ¾” (18mm) high pressure 300 psi (20 bar) GHT threaded inlet hose – other fittings available as specified.
Decontamination can commence in less than 1 minute. Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation
grids, waste water pumps, etc. available. Comes complete with electric inflator/deflator, stakes, repair kit and high pressure SCBA fitting.
Unit supplied w. no charge redundant features allowing for - hanging undress/redress kits etc. on the inlet and outlet side and - doubling of showering capability in the future.

Frame: Heavy duty 1100 Dtex polyester coated with plastomer on both sides, UV/chemical resistant. Cover: Heavy duty 420 denier nylon coated w. polyurethane (PVC) on both sides. UV/chemical resistant/fire retardant. Floor: PVC coated .52 mm polyester. Standard color is ‘EMS’ Blue. Green and White also available at no extra cost. Other colors optional with an extra charge.

Dimensions:
Approximately 7’ W X 7’ L X 8’ H (2.13 M X 2.13 M X 2.43 M), 50 sq. Ft., 80 lbs. (36 Kg)

Technical Data:
Air pressure internally once inflated = 4.3 psi (0.3 bar)
Carton size approx. = 115 X 56 X 30 cm (45” L X 22” W X 12” H)
USA Federal Standard FS # 191 5041/5102/5134/5970 Test
Method Structural Test results
Total Weight (g/m2) – 1055
Thickness (mm) – 0.90
Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404
Elongation (%) – Warp = 30 - Weft = 47
Tongue tear (lbs.) – Warp = 87 – Weft = 100
Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9
Density = 30 X 24.5
