Economy First Responder Hazmat/Decon Shower

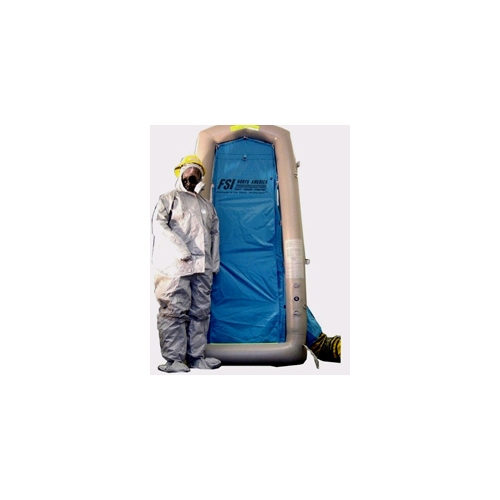

FSI DAT® 1010S First Responder Hazmat Decontamination Shower System

The DAT®1010S comes equipped as standard equipment with an integrally attached ground floor that will hold up to 50 gallons of water (with an 8” berm approx.) before requiring pump out, 2 roll up windows – one on each side, 1 skylight, full closure slip in and out dirty entry/clean exit doors on each end, high pressure air inflation/deflation valve, one air inflation hose w. safety cord, pressure relief valve, 4 stainless steel stakes and ground anchor points, Tie Down Ropes and 4 D-rings to tie off to, Repair kit, manual, carry bag, 2 upper air vents, and hammer. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit air berms. Units can attach to a second shower or FSI Shelter.

The DAT®1010S also comes complete with a qty. of 3 spray nozzle heads and a single 5’ length of coiled ½” hose with an attached multiple function spray gun with spray patterns and flows meant to gently yet thoroughly drench and decon victims. Shutoffs and quick disconnects supplied with every group of shower heads and Trigger Gun. Flows per shower head and per spray gun = approx. 1 gpm optimum and dependent on water volumes available.

Frame: Heavy Duty 1100 Dtex polyester coated w. plastomer on both sides, UV/Chemical resistant. Cover: Heavy Duty 420 Denier nylon (or polyester) coated w. polyurethane (PVC) on both sides. UV/Chemical Resistant/Fire Retardant. Floor: PVC Coated .52 mm Polyester.

Standard Color: is ‘EMS’ Blue. Green and White also available at no extra cost. Other colors optional with an extra charge.

Simply inflate the unit and plug into a water supply. DAT®1010S offered with 1 – ¾” (18mm) High pressure 300 psi (20 bar) GHT threaded inlet hose – other fittings available as specified. Decontamination can commence in less than 1 minute.

Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available.

Comes complete with electric inflator/deflator, stakes, repair kit and high pressure SCBA fitting.

Unit supplied with no charge redundant features allowing for - hanging undress/redress kits etc. on the inlet and outlet side and - doubling of showering capability in the future.

Specifications:
Approximately 3’ W X 3’ L X 8’ H (.9m W X .9m L X 2.13m H), 9 sq. Ft., 45 lbs. (20.5 Kg)

Technical Data:
Air pressure internally once inflated = 4.3 psi (0.3 bar)
Carton size approx. = 91 X 45 X 30 cm (36” L X 18” W X 12” H)
USA Federal Standard FS # 191 5041/5102/5134/5970 Test
Method Structural Test results
Total Weight (g/m2) – 1055
Thickness (mm) – 0.90
Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404
Elongation (%) – Warp = 30 - Weft = 47
Tongue tear (lbs.) – Warp = 87 – Weft = 100
Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9
Density = 30 X 24.5
