Complete Hazmat Decon System includes 2 Line Decontamination Shower System

DAT® 3030S 2-LINE NON-AMBULATORY DECON SHOWER MASS

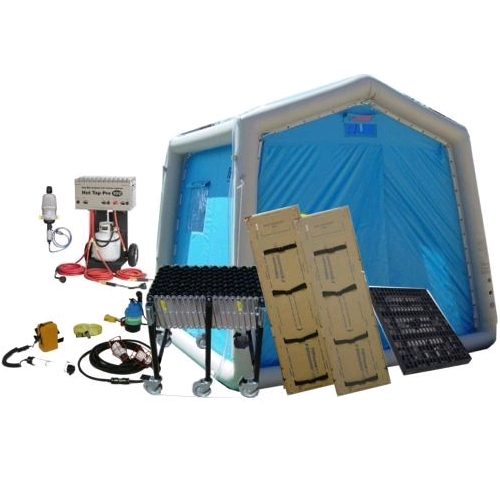

Complete Hazmat Decon System includes 2 Line Decontamination Shower System complete. System includes 1 DAT3030S, 1 FZ100WH Water Heater, 2 F-HSP Hand Sprayer, 2 F-GH Soft Sided Hose, 2 F-RS 8ft Conveyor, 1 F- EM-8 Disposable Backboards, 2 P-LL Lighting System, 1 F-WSP33AA Sump Pump, 4 FTDMSPC Elevation Grids.

CASUALTY SYSTEM Frame: Heavy Duty 1100 Dtex* polyester coated w. plastomer on both sides, UV/Chemical resistant.

Canopy: Heavy duty 100% nylon twill (3/5) w. PU white pigment inner coating, ABT. 0 23mm X 57/58. Wt. AB1.230GR/Sq. M - UV/chemical resistant/fire retardant – UV resistant and water repellent w. a hydrostatic resistance of 250 psi + - Mildew resistant to meet and exceed US Fed. Test MIL.STD.810E 508 - Fire resistance meets and exceeds CPAI 84 SECTION 5 1995, US Fed. Test CFR.1610, meets NFPA701 Flammability Test method 1 (2004), NFPA 702 w. ‘A’ burn scale rating.

Floor: PVC of 0.58mm thickness (1,000 Dtex, 18 X 18 polyester) 660 grams per sq. mm 60” W.

Colors: Standard color is "FSI Blue". Green and White also available as standard. Other colors offered P.O.A.

Technical data: Air pressure internally once inflated = 4.3 psi (0.3 bar)USA Federal Standard FS # 191 5041/5102/5134/5970 Test Method Structural Test resultsTotal Weight (g/m2) – 1055Thickness (mm) – 0.90Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404Elongation (%) – Warp = 30 - Weft = 47Tongue tear (lbs.) – Warp = 87 – Weft = 100Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9Density = 30 X 24.5

Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available. The DAT®3030S is a 2 (two) line system designed to handle 2 non-ambulatory personnel on stretchers with attendants working on either side of the victim inside the unit, or the DAT3030S can handle 1 non-ambulatory and two ambulatory, or 4 ambulatory personnel at any one time.

The DAT®3030S comes equipped as standard equipment with an integrally attached ground floor that will hold up to 200 gallons of water (with an 8”/20 cm berm approx.) before requiring pump out, 2 roll up windows – one on each side, 2 skylights, full closure slip in and out dirty entry/clean exit doors, 2 (two) 17”/43 cm HVAC/clothes inlet/outlets with tie closures, 1 (one) center divider curtain, 4 (four) ½ cross divider curtains, 2 high pressure and 2 low pressure inflation deflation valves, one air inflation hose w. safety cord, 2 pressure relief valves, 4 stainless steel stakes and ground anchor points, tie down ropes and 4 D-rings to tie off to, repair kit, manual, carry bag, 2 upper air vents, and a hammer. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit integral shower stall air berms. Units can attach to a second shower or FSI shelter. Simply inflate the unit - plug into a water supply and commence decon in 1 – 2 minutes.

The DAT® 3030S also comes complete with a with a qty. of 12 spray nozzle heads and qty. of 4 (four) 5’/1.5 M lengths of coiled ½”/13 mm hose with attached multiple function spray guns with shutoffs and quick disconnects offering spray patterns and flows meant to gently yet thoroughly drench and decon victims. Flows per shower head and per spray gun = approx. 1 gpm/4 lpm optimum and dependent on water volumes available.

DAT®3030S Approx. 10’ W X 10’ L X 8’ H (1.52 X 3.05 X 2.43 M), Approx. 100 sq. Ft. (9.3M²) 95 lbs. (42.5 Kg) Carton size approx. = 120 X 60 X 40 cm (48” L X 23” W X 15” H) As an option -- one can double the capacity if required. Simply inflate the unit and plug into a water supply - unit is offered with 1 – ¾” (19mm) high pressure 300 psi (20 bar) GHT threaded inlet hose – other fittings available as specified. Comes complete with electric inflator/deflator, and high pressure scba fitting.Unit supplied w. no charge redundant features allowing for - hanging undress/redress kits etc. on the inlet and outlet side and - doubling of showering capability in the future. * 1100 dtex material is 1.5mm thick and consists of 0.62mm plastomer coated PVC/0.3mm polyester yarn/0.62mm plastomer coated PVC

System includes: 1 DAT3030S, 1 F-Z100WH, 2 F-HSP, 2 F-GH, 2 F-RS, 1 F - EM 8, 2 P-LL, 1 F-WSP33AA, 4 F-TDMSPC. Multiple options avail. FSI reserves the right to sub.products as needed that meet/exceed spec.
