2-Line NON-Ambulatory Decon Shower Mass Casualty System

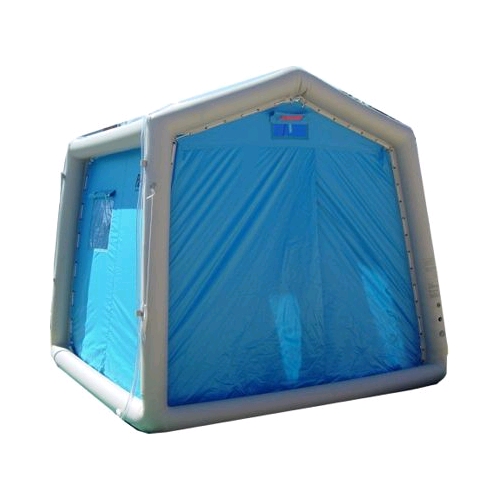

FSI DAT® 3030S 2-LINE NON-AMBULATORY DECON SHOWER MASS CASUALTY SYSTEM

The DAT®3030S is a 2 (two) line system designed to handle 2 non-ambulatory personnel on stretchers with attendants working on either side of the victim inside the unit, or the DAT3030S can handle 1 non-ambulatory and two ambulatory, or 4 ambulatory personnel at any one time. Frame: Heavy duty 1100 dtex polyester coated w. plastomer on both sides, UV/chemical resistant. Cover: Heavy duty 420 denier nylon coated with polyurethane (PVC) on both sides. UV/chemical resistant/fire retardant. Floor: PVC coated .52 mm polyester. Standard color is ‘EMS’ blue exterior with high visibility white inside color. Green and white exterior canopy color also available at no extra cost. Other colors optional with an extra charge. The DAT®3030S comes equipped as standard equipment with an integrally attached ground floor that will hold up to 200 gallons of water (with an 8”/20 cm berm approx.) before requiring pump out, 2 roll up windows – one on each side, 2 skylights, full closure slip in and out dirty entry/clean exit doors, 2 (two) 14”/35 cm HVAC/clothes inlet/outlets with tie closures, 1 (one) center divider curtain, 4 (four) ½ cross divider curtains, air inflation valve, one air inflation hose w. safety cord, pressure relief valve, 4 stainless steel stakes and ground anchor points, tie down ropes and 4 D-rings to tie off to, repair kit, manual, carry bag, 2 upper air vents, and a hammer. All canopy walls are velcro’d to the floor air berms for air lock, and reflective striping is found on the upper air vents above doors and on entry and exit integral shower stall air berms. Units can attach to a second shower or FSI shelter. Simply inflate the unit - plug into a water supply and commence decon in 1 – 2 minutes.
The DAT® 3030S also comes complete with a with a qty. of 12 spray nozzle heads and qty. of 4 (four) 5’/1.5 M lengths of coiled ½”/13 mm hose with attached multiple function spray guns with shutoffs and quick disconnects offering spray patterns and flows meant to gently yet thoroughly drench and decon victims. Flows per shower head and per spray gun = approx. 1 gpm/4 lpm optimum and dependent on water volumes available.

As an option -- one can double the capacity if required. Simply inflate the unit and plug into a water supply - unit is offered with 1 – ¾” (18mm) high pressure 300 psi (20 bar) GHT threaded inlet hose – other fittings available as specified. Multiple optional accessories available inclusive of air and water heaters, air coolers, elevation grids, waste water pumps, etc. available. Comes complete with electric inflator/deflator, and high pressure scba fitting.

Unit supplied with no charge redundant features allowing for - hanging undress/redress kits etc. on the inlet and outlet side and - doubling of showering capability in the future.

Specifications:
DAT®3030S Approx. 10’ W X 10’ L X 8’ H (1.52 M X 3.05 M X 2.43 M),
100 sq. Ft., 95 lbs. (42.5 Kg)

Technical data:
* Air pressure internally once inflated = 4.3 psi (0.3 bar)
* Carton size approx. = 120 X 60 X 40 cm (48” L X 23” W X 15” H)
* Air pressure internally once inflated = 4.3 psi (0.3 bar)
* USA Federal Standard FS # 191 5041/5102/5134/5970 Test
   Method Structural Test results
* Total Weight (g/m2) – 1055 Thickness (mm) – 0.90
* Cut strip tensile strength (lbs. /in.) – Warp = 450 - Weft = 404
* Elongation (%) – Warp = 30 - Weft = 47 Tongue tear (lbs.) – Warp
   = 87 – Weft = 100
* Adhesion (lbs. /in.) – Warp = 9.4 – Weft = 8.9 Density = 30 X 24.5
