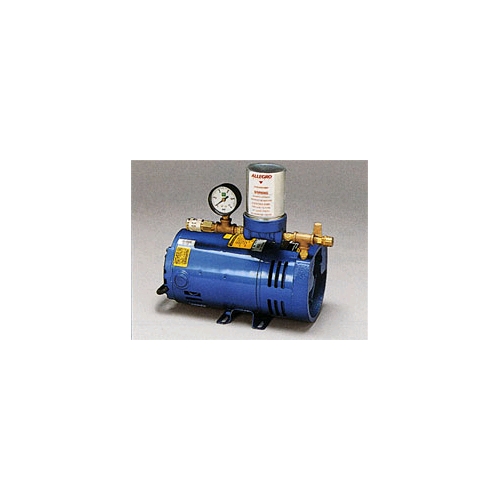

Allegro Ambient Air Pump A-300
Allegro's cost effective Ambient Air Breathing Pumps are designed to be used outside the contaminated work environment to bring clean, breathable air into a supplied air respirator or hood. They offer a low cost portable air source when a compressor is not available. They are portable and oil-less, producing no carbon monoxide, oil vapor or oil mist, thus eliminating the need for carbon monoxide monitoring and alarm systems. An Air Driven unit is available for use when electric power is unavailable or undesirable. All pumps come fully assembled including all filters, fittings and couplers (specify coupler when ordering).
Ideal for a super portable, lightweight air source for a single respirator user. Solid performance in applications of one-worker painting, cleaning, sanding or chemical handling operations. For one respirator
Specifications:
Construction | Rigid metal base & housing, brass plumbing, quick connect Rectus (OBAC) air fitting, adjustable brass pressure relief valve, powder coated blue |
Pump | Type: Oil-less, rotary vane |
Vanes: Carbon construction (4 each replaceable), 1.25" x 1.5" x 0.125" | |
Filter - Inlet: 40.0 micron bronze/steel | |
Filter - Exhaust: 0.3 micron HEPA inline | |
Pressure Gauge: 1 1/2" face, 0-15 psi, steel housing | |
Working Pressure: 2-12 psi, 15 psi maximum | |
Performance: 0-5 CFM @ 60 Hz, 0-4 CFM @ 50 Hz | |
Noise Level: At Pump: 90 dB | |
Motor | HP: 1/4 |
Volts: 115V/230 VAC, Single Phase | |
Hertz: 60/50 UL Listed, CSA certified | |
RPM: 1725 RPM @ 60 Hz/1425 RPM @ 50 Hz | |
Currant Draw: 115V, 4.6A @ 60 Hz/ 4.8-5.0A @ 50 Hz | |
Cord: 6.5' AWG 16/3 SJOOW with integrated On/Off Switch | |
Plug: Integrated NEMA 5-15 | |
Airline | 100' maximum from pump to respirator |
Dimensions | 15" L x 9" W x 13" H, 32 pounds |
