Allegro Ambient Air Pump A-1500EX
Allegro's cost effective Ambient Air Breathing Pumps are designed to be used outside the contaminated work environment to bring clean, breathable air into a supplied air respirator or hood. They offer a low cost portable air source when a compressor is not available. They are portable and oil-less, producing no carbon monoxide, oil vapor or oil mist, thus eliminating the need for carbon monoxide monitoring and alarm systems. An Air Driven unit is available for use when electric power is unavailable or undesirable. All pumps come fully assembled including all filters, fittings and couplers (specify coupler when ordering).
The easiest way to meet your needs for portable air sources for up to three respirator users or two hood users. Available in explosion proof configurations for special applications. Applicable for chemical handling and clean-up. For up to three respirators or two hoods.

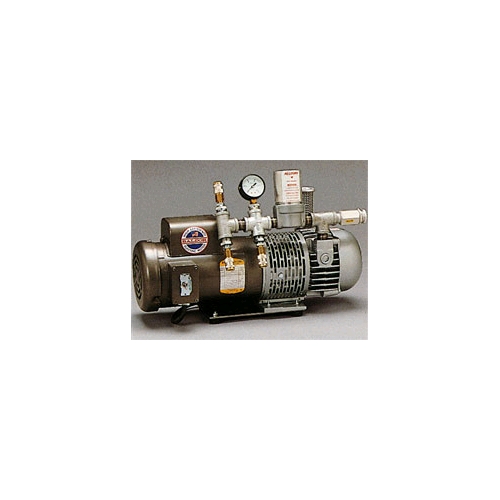

A-1500EX (Explosion Proof)
Specifications:
Construction | Rigid metal base & housing, brass & galvanized steel plumbing, quick connect Rectus (OBAC) air fitting, adjustable brass pressure relief valve, powder coated gray, fan guard |
Pump | Type: Oil-less, rotary vane, direct driven |
Vanes: Carbon construction (4 each replaceable), 3.5" x 1.344" x 0.188" | |
Filter - Inlet: 50.0 felt material | |
Filter - Exhaust: 0.3 micron HEPA inline | |
Working Pressure: 2-12 psi, 15 psi maximum | |
Performance: 0-15 CFM @ 60 Hz | |
Noise Level: At Pump: 95 dB | |
Motor | HP: 1 1/2 HP UL listed, CSA certified, TEFC continuous duty |
Volts: 115V/230 AC, Single Phase | |
RPM: 1725 RPM | |
Currant Draw: 115V, 16A | |
Cord: 12' AWG 16/3 SJOOW 300V Neoprene med duty | |
Airline | 100' maximum from pump to respirator |
Dimensions | 27" L x 10" W x 15" H, 110 pounds |
